Ultra High Pr' RPZCV
ValTechCo., LTD

The Republic of Korea control valve industry, ValTech the leading

ValTech Valve Maintenance & Development is based on 12 years of experience gained
in the field of industry, aimed at the world market,
Ultra high Pressure Regulator-Pilot-ZetTrim- announced the control valve.

  • CE
  • CE-PED (97/23/EC Category IV, H Moudule)
    CE-MD (2006/42/EC), ISO 12100 EN 60204-1，EN4414
    RINA (Rrsistro Italiano Navale)
    ISO 9001
  • ValTech
  • 160, Techno 2-ro, Yuseong-gu, Daejeon, 34028, Rep. of KOREA
    TEL +82-42-933-7060，FAX +82-42-933-7065
    HP +82-10-3406-0166
    www.valtech.kr
    lim0166@naver.com
  • ValTech

ValTech.kr ZETTRIM

Core Products
Ultra High Pressure Regulator-Pilot-ZetTrim Control Valve - 8mm

  • Core Products

  • Second pressure
    control valve controller

    Core Products

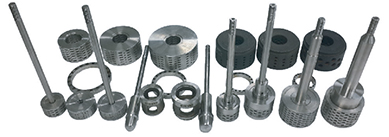

  • Core Technology Products
    ValTech ZetTrim Control Device

    Core Products

The World's Best High Gas Differential Pressure Control Valve

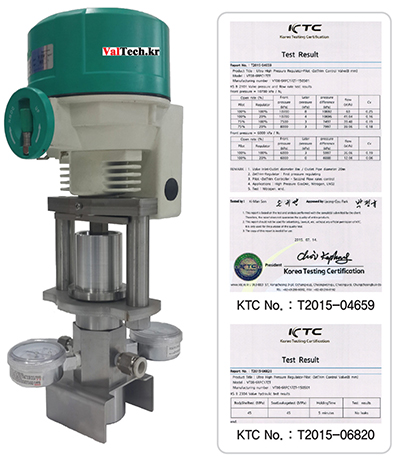

Ultra high Pressure Regulator-Pilot-ZetTrim Control Valve

Model：VT08-6RPC17ZT
Manufacturing number：VT08-6RPC17ZT-150501
Pressure range： 2675 / 1

Ultra high Pressure Regulator-Pilot-ZetTrim Control Valve

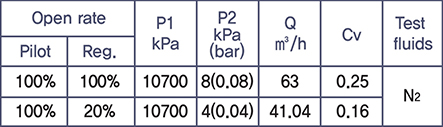

① KS B 2101 Valve pressure and flow rate test results
KS B 2101 Valve pressure and flow rate test results
Korea Testing Certification Report No.：T2015-04659
② KS B 2304 Valve hydraulic test results
KS B 2304 Valve hydraulic test results
Korea Testing Certification Report No.：T2015-04659

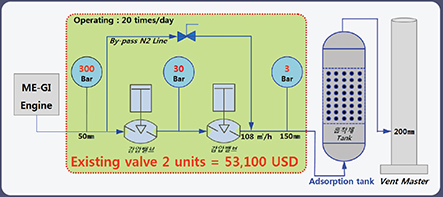

Application system
Application system
ValTech Valve 1 Units = 44,000 USD

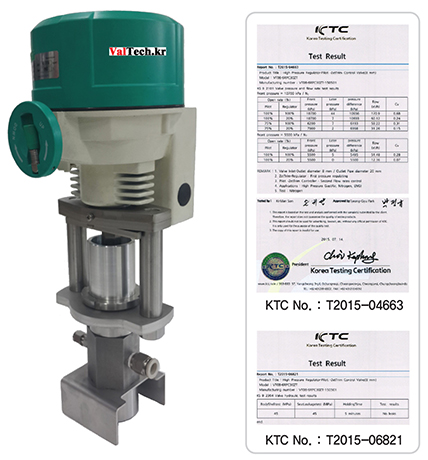

High Pressure Regulator-Pilot-ZetTrim Control Valve

Model：VT08-6RPC30ZT
Manufacturing number：VT08-6RPC30ZT-150501
Pressure range： 1528 / 1

High Pressure RegulatorᅵPilot—ZetTrim Control Valve

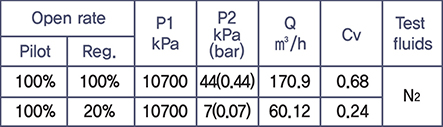

① KS B 2101 Valve pressure and flow rate test results
KS B 2101 Valve pressure and flow rate test results
Korea Testing Certification Report No.：T2015-04663
② KS B 2304 Valve hydraulic test results
KS B 2304 Valve hydraulic test results
Korea Testing Certification Report No.：T2015-06821

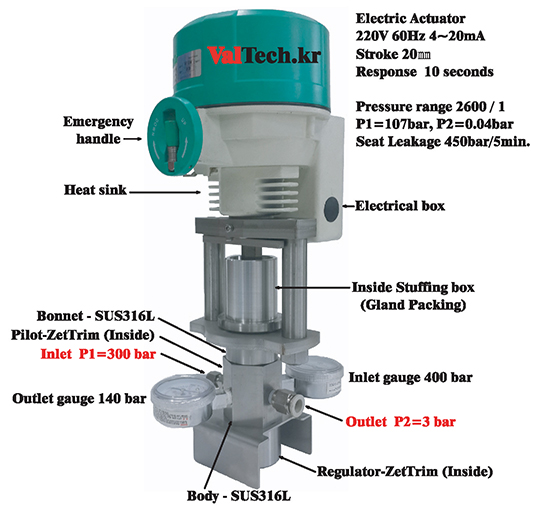

Features
  • ① Valve Inlet-Outlet dia. 8mm/ Outlet Pipe dia. 20mm
  • ② ZetTrim Regulator - First pressure regulating
  • ③ Pilot—ZetTrim Controller : Second pressure control
  • ④ Applications：High Pressure Gas (Air, Nitrogen, LNG)
  • ⑤ Material KS SUS316L, 4~20mA(Option 0~10VDC),
        Electric 220VAC±10%，60[50]Hz
