Electric Globe, Gate, Knife Gate Valve
TMi Actuator

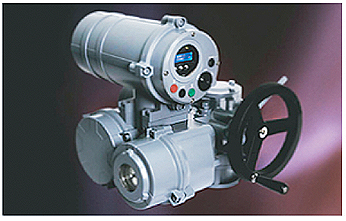

TMi Series Multi-turn Actuator

TM-SERIES is for multi turn valves - globe, gate valves，and also for quarter turn valves - butterfly,ball valves adopting 2nd worm reducer. Major parts / component are easy to change for trouble shooting and maintenance. Wide range voltage motors (220V〜460VAC,3Phase) are ready for your choice. All the compartments of TM series are double sealed with a pair of V shape ring & O ring and have the flame path according to IEC standard to ensure complete protection from dust, moisture and flame. • Water proof : IP-68 (IEC-60529，submersible to a depth of 8 meters for 72hours) • Explosion proof : Exd IIB-T4 (IEC-60079-0, 1) • Communication Standard : Mod Bus-RTU, Profibus-DP, Foundation FieldBus, HART ■ Specification for Actuator - Main Power : 380VAC 3Ph 60Hz (Option 220V) - Modulation Controller Ass'y : DC 4~20mA Input / Output - Accuracy : ±0.5 %FS，adjustment range : Zero ±20%，Span ±20% - Integral Type : Reverse Motor Starter with Control Transformer - Limit Switch & Torque Switch - Local / Remote Selector Switch - Local Position Indicator : 0~100% - Local Pushbutton Switch (Open/Stop/Close) & Lamp - Motor Thermostat / - "F" Class Insulation Motor - Auto Return Lever & Manual Handwheel - Space Heater ： 110~250VAC，5W / - Enclosure protection rating : IP68

■ TMi Series Speed-Torque table

TM Series	rpm	60 Hz	14.0	18.2	24	31.5	42	55	72	95	189	Weight(kg)
		50Hz	11.7	15.2	20	26	35	46	60	79	157
	kW		N·m
TM-Oli	0.2		133	103	78	59	64	49	37			31
	0.4		147	147	147	112	120	92	70	53		32
	0.75			147	147	147		147	117	89	46	35
TM-04i	0.75		483	371	282	215	221	170	129	98	91	52
	1.5			549	549	510		404	307	234		58
	12			549	549	549		492	374	285	131	62
TM-07i	2.2		844	844	816	622	641	492	374	285		88
	3.7			844	844	844		785	596	454		103
	5.5			844	844	844		844	844	659	352	109

※ 189 rpm is a 2-pole motor.

Allowed Torque N·m(kgf·m)	Allowed Thrust ton(kN)	Allowed Stem dia.(mm)		Flange dia.(mm)	ISO No.	Tap PCD(mm)	Pilot dia.(mm)
		Key	Threaded
147 (15)	7(69)	34	40	125	F10	1024xM10	70
549 (56)	13 (127)	50	58	175	F14	1404xM16	100
844 (85)	16 (157)	60	72	210	F16	1654xM20	130

※ proportional control (4 〜 20mA) is applied to 50% of Max Torque

Electric Globe, Gate, Knife Gate Valve
IQH Actuator

IQH Speed Multi-turn Actuator

Based on the multi-turn IQ actuator the IQH provides a range of high output speeds while being generally irreversible and therefore provides a self-locking* ability by the actuator for the valve. Developed for diverter valves in meter prover applications, IQH provides fast operation with positive seating without backdriving. IQH Pro actuators offer the following powerful features: - Multi-turn and quarter-turn - High speed - self locking capability - Non-intrusive set-up - Clear user friendly controls and indication - Simplified torque and position control for increased reliability - Flexible and comprehensive control and indication - On-board datalogger - IrDA compatible for local and remote actuator analysis via PC - IQ insight & IQ Pocket Insight software tools for set-up, analysis, asset management and diagnostics

IQH Performance data

Actuator output speeds
rpm at 50 Hz	108		144		216
rpm at 60 Hz	130		173		259
Final gear ratio	80:1		60:1		40:1
Actuator size	Torque
	Nm	Ft Ibf	Nm	Ft lbf	Nm	Ft lbf
IQH20	75	55	75	55	68	50
IQH25	108	80	98	72	83	61
IQH35	202	149	102	134	153	113
IQH40	397	293	347	256	240	177

* Stall torque will be 1.4 to 2 times this value depending on speed and voltage

IQ Series Mechanical Data

1Q IQS 10D Series	Actuator size	10	12	20	25	35	40
Flange size	ISO 5210	F10	F10	F14	F14	F16	F25
Approximate weight	kg (lbs)	27(60)	27(60)	46(101)	46(101)	69(152)	190(418)

Group 'A' couplings

Thrust rating	kN	44	44	100	100	150	220
	lbf	10,000	10,000	22,480	22,480	33,750	50,000

Stem diameter Type 'A' (Maximum)

Rising	nm	32	32	38	38	54	64
	ins	1 1/4	1 1/4	1 1/2	1 1/2	2 1/8	2 1/2
Non-Rising	m	26	26	32	32	45	51
	ins	1	1	1 1/4	1 1/4	1 3/4	2
