Precision Gas Flow ZetTrim Control Valve

25mm Lenear Choke-ZetTrim Control Valve (18㎥/h)

Model：VT25-2LCP3ZT
Manufacturing number：VT25-2LCP3ZT-150401
Flow range： 19.4 / 1

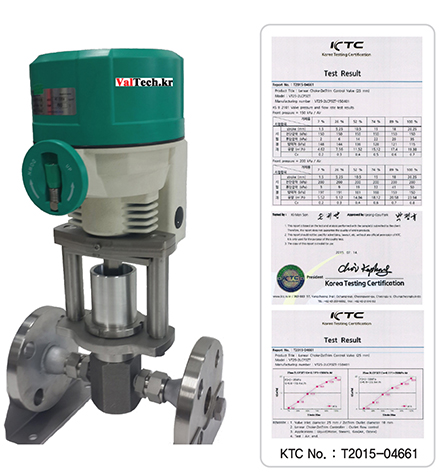

25mm Lenear Choke-ZetTrim Control Valve (18m3/h)

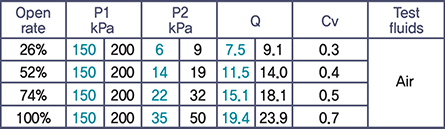

① Valve Pressure and flow rate test results (KS B 2101)
Valve Pressure and flow rate test results (KS B 2101)
Korea Testing Certification Report No. : T2015-04661

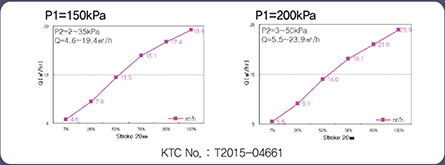

KTC NO : T2015-046661
Model : VT25-2LCP3ZT Features
  • ① Valve Inlet dia. 25mm / ZetTrim Outlet dia. 10mm
  • ② Lenear Choke-ZetTrim：Outlet flow control
  • ③ Applications：Liquid, Gas (Air, Ozone)
  • ④ Material KS SUS316L, 4~20mA(Option 0~10VDC),
        Electric 220VAC±10%, 60[50]Hz

20mm Multi Choke-ZetTrim Control Valve (3㎥/h)

Model：VT20-2MCP3ZT
Manufacturing number：VT20-2MCP3ZT-150401
Flow range： 5.7 / 1

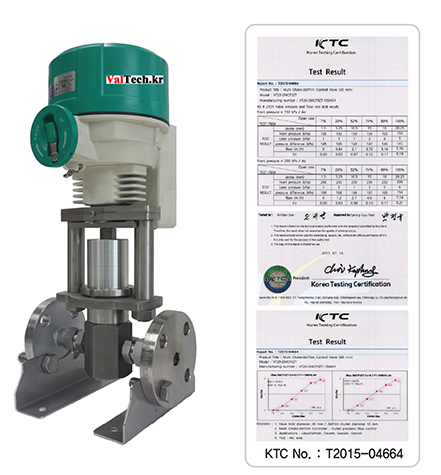

20mm Multi Choke-ZetTrim Control Valve (3m3/h)

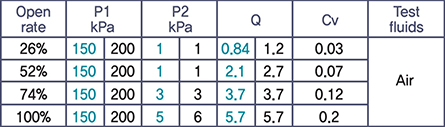

① Value Pressure and flow rate test results (KS B 2101)
Value Pressure and flow rate test results (KS B 2101)
Korea Testing Certification Report No. : T2015-04664

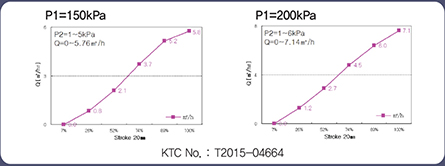

KTC NO : T2015-04664
Model : VT20-2MCP3ZT Features
  • ① Valve Inlet-dia. 20㎜/ ZetTrim Outlet dia. 10mm
  • ② Multi Choke-ZetTrim：Outlet precision flow control
  • ③ Applications：Liquid, Gas (Air, Ozone)
  • ④ Material KS SUS316L, 4~20mA(Option 0~10VDC),
        Electric 220VAC±10%, 60[50]Hz
