ValTechZetTrim Control Valve

Technology that quits control valve noise

  • enertork

    enertork

  • enertork

    enertork

  • enertork

    enertork

  • rotork

    rotork

  • 50mm #150 ZetTrim Globe

    50mm #150 ZetTrim Globe

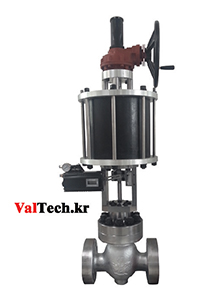

  • 100mm #150 ZetTrim Globe

    100mm #150 ZetTrim Globe

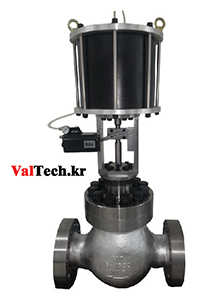

  • 250mm #150 ZetTrim Globe

    250mm #150 ZetTrim Globe

  • 200mm #150 Gate

    rotork

    200mm #150 Gate

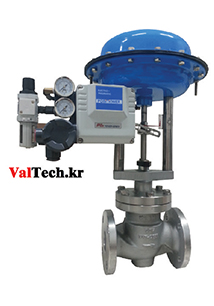

  • 50mm #150 ZetTrim Globe

    50mm #150 ZetTrim Globe

  • 50mm #2500 ZetTrim Globe

    50mm #2500 ZetTrim Globe

  • 150mm #1500 ZetTrim Globe

    150mm #1500 ZetTrim Globe

  • 50mm #150 Gate

    50mm #150 Gate

Features & Specification
Size 1/4"~14" [8~400mm]
Rating ANSI #150〜#4500 [1〜32MPa]
Pressure range 4/1 ~2675 / 1
Pressure Control ZetTrim [Low, High, Ultra]
Flow Control Plug Injection, Pilot, Multi Choke
Temperature -160 ~560℃
Body Style Globe
Seat Leakage ANSI Class III or VI
End Connect RF Flange, BW, SW
Body Material WCB, WC6(9)，CF8, CF8M
Casting, forged, stainless steel
Pneumatic Actuator
EP Positioner 4~20mA DC [Option Smart]
Air Set Piston：〜0.6MPa
Diaphragm :〜0.3MPa
Electric Actuator
Power 3Ph 200〜480V 60Hz [50Hz]
Signal 4~20mA DC
Usage
  • Power Plant, Petrochemical Plant, Industrial plant
  • Water supply, Ballast Water, Turbo chiller
  • High Pressure gas, Water, Steam, Air, Ozone, LNG
ValTech core technology
  • ① ZetTrim flow velocity deceleration - differential pressure technology.
  • ② Orifice reduced pressure - differential pressure technology.
  • ③ Pilo-ZetTrim reduced pressure technology.
  • ④ Patent 7

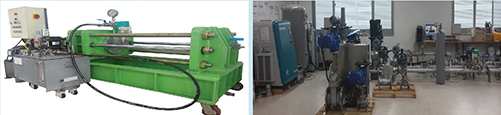

ValTech Valve Testing Equipment
ValTech Valve Testing Equipment
  • ① Air pressure (1MPa) - Flow test
  • ② Water pressure (2MPa) - Flow test
  • ③ Water Pressure(100MPa) - body test or seat leakage test

High Pressure ZetTrim Control Valve

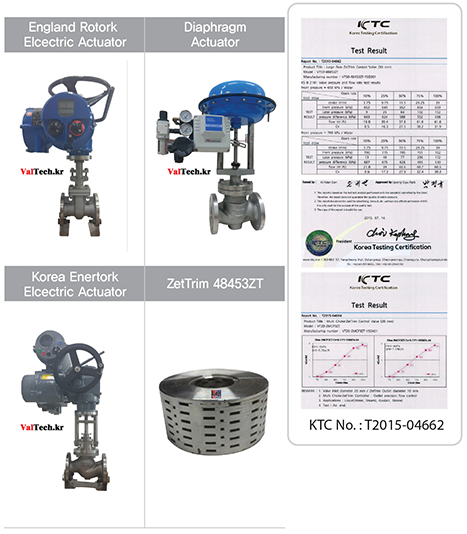

50mm Large Flow ZetTrim Control Valve

Model：VT50-48453ZT
Manufacturing number：VT50-48453ZT-150301
Flow range : 3.3 / 1

50mm Large Flow ZetTrim Control Valve

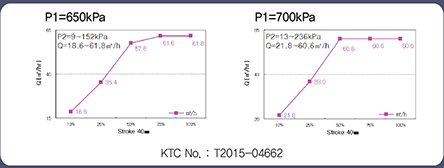

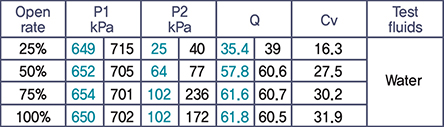

① Valve pressure and flow rate test results (KS B 2101)
Valve pressure and flow rate test results (KS B 2101)
Korea Testing Certification Report No.：T2015-04662
KTC No. : T2015-04662
Model：VT50-48453ZT Features
  • ① Valve Inlet dia. 50mm / ZetTrim Outlet dia. 45mm
  • ② ZetTrim： 2nd pressure & Large flow control
  • ③ Applications：Liquid(Water, Steam), Gas(Air, Ozone)
  • ④ Material KS SUS304, 4~20mA(Option 0~10VDC), Electric 380VAC±10%,     60[50]Hz, or Pneumatic Dia.

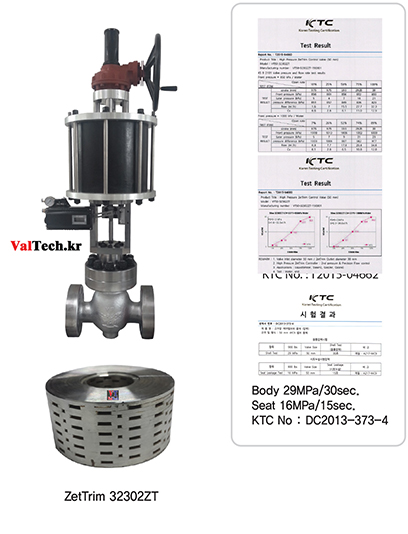

50mm High Pressure ZetTrim Control Valve

Model：VT50-32302ZT
Manufacturing number : VT50-32302ZT-150301
Flow range： 5.7 / 1

50mm High Pressure ZetTrim Control Valve

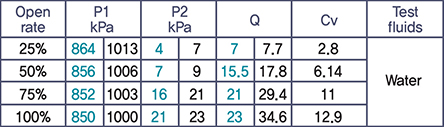

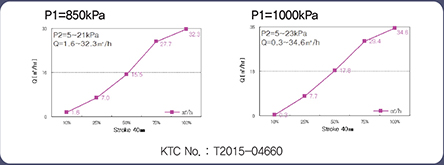

① Valve pressure and flow rate test results (KS B 2101)
Valve pressure and flow rate test results (KS B 2101)
Korea Testing Certification Report No.：T2015-04660
KTC No. : T2015-04662
Model：VT50-32302ZT Features
  • ① Valve Inlet dia. 50mm / ZetTrim Outlet dia. 30mm
  • ② ZetTrim： 2nd pressure & Precision Flow control
  • ③ Applications：Liquid(Water, Steam), Gas(Air, Ozone)
  • ④ Material KS SUS316L, 4~20mA(Option 0~10VDC),
        Electric 220VAC±10%, 60[50]Hz, or Pneumatic Dia.

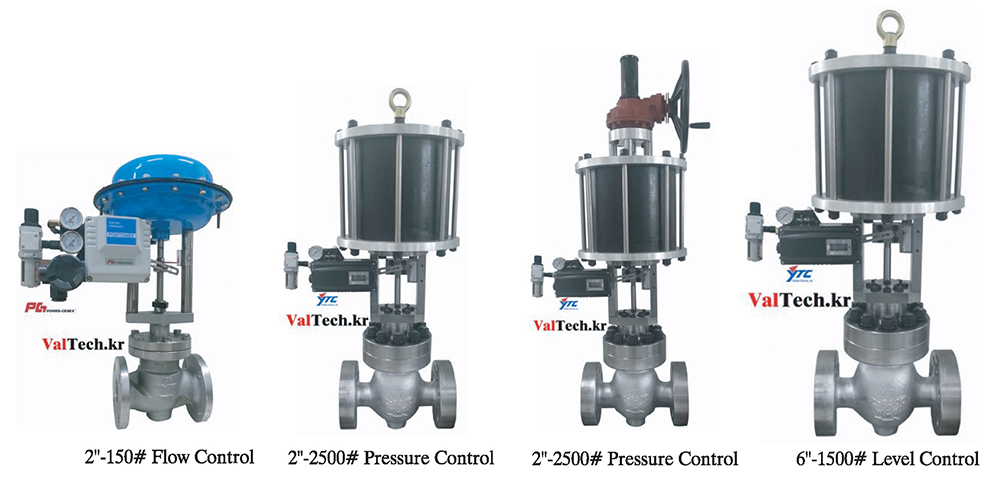

Pneumatic Glove Control Valve

The best quality & Service in the world

Pneumatic Glove Control Valve
Casing Globe Valve Material
Body part Stainless Steel Cast Steel (Force)
©Body ASME
JIS		 A351-CF8 SCS13 A216-WCB SCPH2 A217-WC6 (9) SCPH21 (32)
② Bonnet A351-CF8 A105(SF45) A105 (SF45)
③ Stem A276-304 A276-410 A276-410
④ Disc A351-CF8 A217-CA15 A217-CA15
©Gland A351-CF8 A276-304 A276-304
©Gland Packing Graphite Graphite Graphite
⑦ Gasket SS304+Graphite SS304+Graphite SS316+Graphite
Applicable Standard
  • - Design Standard: API 600, BS1414, DIN3352
  • - Face to Face: ASME B16.10, EN 558, DIN3202
  • - Raised Face Flange Dimensions: ANSI B16.5
  • - Butt welding Ends: ASME B16.25, DIN3239
  • - Inspection and Test: API 598，DIN3230
  • - Inspection and Test time: Per API 600

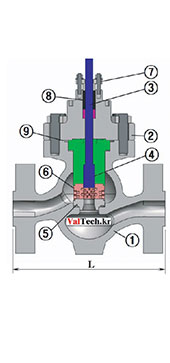

Globe Valve Dimension

Globe Valve Dimension

(Unit:㎜)THT

Size ASME Class L (㎜)
150# 300# 600# 900# 1500# 2500#
㎜ In L Kg L Kg L Kg L Kg L Kg L Kg
50 2" 203 21 267 28 292 55 368 82 368 125 451 150
65 2.5" 216 27 292 40 330 65 419 125 419 160 508
80 3" 241 35 318 45 356 85 381 165 470 185 578
100 4" 292 55 356 87 432 152 457 200 546 350 673 500
125 5" 356 75 400 116 508 255 559 375 673 515 794
150 6" 406 95 445 150 559 325 610 510 705 630 914 750
200 8" 495 190 559 285 660 565 737 1260 832 2150 1022
250 10" 622 240 622 370 787 790 838 2080 991 3250
300 12" 698 370 711 475 838 1030 965 2680 1130 4450
