Electric Ball & Butterfly Valve

•

  HKC Electric On-Off
  Ball Valve

•

  HKC Electric On-Off
  Ball Butterfly Valve

•

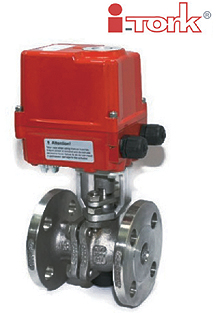

  i-tork Electric On-Off
  Ball Valve

•

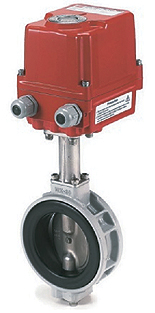

  i-tork Electric On-Off
  Butterfly Valve

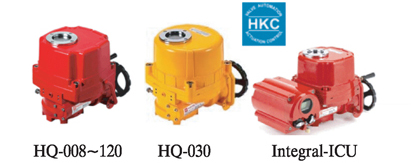

HKC & i-tork Electric Quarter-turn Actuator

Size		HKC Actuator					i-tork Actuator
mm	In	Model	Torzue Nm	Weight kg	Open (60Hz)	Frame size	Model	Torzue Nm	Weight kg	Open (60Hz)	ISO Flange
25	1"	HQ-600	60				ITQ-0080	80	3.5	14Sec	F05/07
32	1.3"	HQ-006	60				ITQ-0080	80	3.5	14Sec	F05/07
40	1.5"	HQ-008	80	7.4	13Sec	15*70	ITQ-0100	100	7	18Sec	F07
50	2"	HQ-010(008)	100				ITQ-0160	160	15	22Sec	F07/10
65	2.5"	HQ-150(020)	150	13	21Sec	40*80	ITQ-0160	160	15	22Sec	F07/10
80	3"	HQ-020(015)	200	13	21Sec	40*80	ITQ-0240	240	15	22Sec	F07/10
100	4"	HQ-030	300	23	26Sec	40*90	ITQ-0350	350	20	26Sec	F10/12
125	5"	HQ-050	500	24	26Sec	90*90	ITQ-0500	500	20	26Sec	F10/12
150	6"	HQ-060 HQ-080	600 800	24 29	31Sec	90*90 180*90	ITQ-0800 ITQ-1100	800 110	25	32Sec	F12/14
200	8"	HQ-120	1200	29	31Sec	180*90	ITQ-1500	1500	25	32Sec
250	10"	HQ-200	2000	78	93Sec	180*90	ITQ-2000	2000	42	50Sec	F16
300	12"	HQ-300	3000	78	93Sec	180*90	ITQ-3000	3000	42	50Sec	F16
350	14"	HQ-300	3000	78	93Sec	180*90	ITQ-6000	6000	150	149Sec	F235/30
Power Supply		110/220V AC, 1Ph(50/60Hz) 士 10% 380/440V AC, 3Ph(50/60Hz) 土 10%					110/220V AC, 1Ph(50/60Hz) 士 10%, 24V DC 380/440V AC, 3Ph(50/60Hz) 土 10%
Control		110/220V AC, 1Ph(50/60Hz) 土 10%					110/220V AC, 1Ph(50/60Hz) 士 10%
Travel		90° ±10° (0°~110°)					90° ±10° (0°~110°)
Temp		-20°C~70°C					-20°C~70°C
Option		In/Out: 0-10V, 4~20mA DC					In/Out: 0-10V, 4~20mA DC
Product Photos

* Electrical wiring connection attention : The motor burn out
