Pneumatic 2Way Ball Valve

○ Features : Water，Oil, Gas，Steam，Chemical Fluid Control
○ Application : Building, Factory and industrial automation lines

Pneumatic_2Way_Ball_Valve
Description
  • - Pressure class: ANSI 150#/300#/600#，API 6D
  • - Material : WCB，CF8, CF3，CF8M, CF3M, A105，F304，F316，
                       other materials available on request
  • - End Connection : RF/FF Flange, Ring type joint, Butt weld
  • - Option
       · Double seal
       · Vacuum service
       · NACE
       · Extended stem / High temperature to 350¡AEC
Features & Benefits
  • - Forged & Casting body, Soft & Metal seat
  • - Self relief design, Fire safe design
  • - Double block & bleed design(open & close position)
  • - Emergency sealant fittings
  • - ISO mounting pad
  • - Double seal design(option)
  • - Easy operation at high pressure

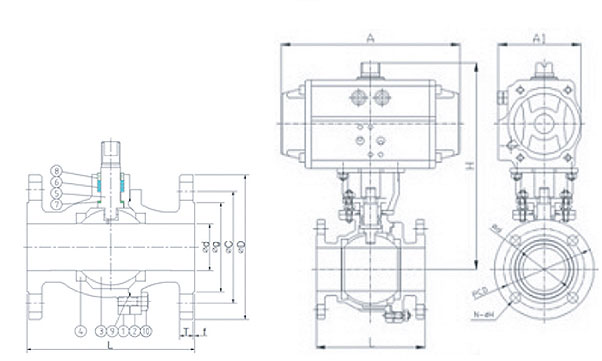

Pneumatic_2Way_Ball_Valve

Ball Valve Material

HS 300# / 600 # Part List
No Part Name Material Q'ty
1,2 Body A216WCB 1
3 Ball A351-CF8 1
4 Seat Ring RTFE 2
5 Stem A276-304 1
6 V-Packing PTFE 1Set
7 Back Packing PTFE 1
8 Gland A276-304 1
9 Gasket PTFE 1
10 Hex Bolt SCM435 1Set
HWC HWC 150# Part List
1,2 Body SCSI 3 (CF8) 1
Ball SUS304 1
4 Seat Ring PTFE(Teflon) 2
Ball Valve Dimension(Unit : ㎜)HS
Size 150#(10K) 300#(20K) 600#(40K)
㎜ In L g C D T L g C D T L g C D T
25 1" 127 50.8 79.4 110 9.6 165 50.8 88.9 125 15.9
40 1.5" 165 73 98.4 125 12.7 190 73 114.3 155 19.1 241 73 114.3 155 22.3
50 2" 178 92.1 120.7 150 14.3 216 92.1 127 165 20.7 292 92.1 127 165 25.4
80 3" 203 127 152.4 190 17.5 282 127 168.3 210 27 356 127 168.3 210 31.8
100 4" 229 157.2 190.5 230 22.3 305 157.2 200 255 30.2 432 157.2 215.9 275 38.1
125 5" 356 185.7 215.9 255 22.3 381 185.7 235 280 33.4
150 6" 394 215.9 241.3 280 23.9 483 215.9 269.9 320 35 559 215.9 292.1 355 44.5
200 8" 457 269.9 298.5 345 27 502 269.9 330.2 380 39.7 660 269.9 349.2 420 55.6
250 10" 533 323.8 362 405 28.6 568 323.8 387.4 445 46.1 787 323.8 431.8 510 63.5
300 12" 610 381 431.8 485 30.2 648 381 450.8 520 49.3 838 381 489 560 66.7
1.5"~12" f = 2㎜ f = 2㎜ f = 7㎜

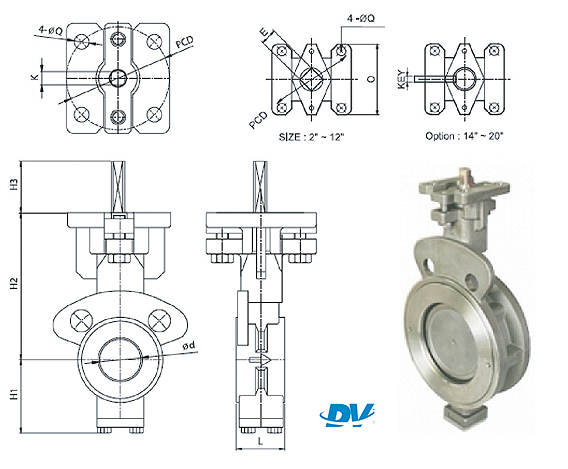

Pneumatic & Electric Butterfly Valve
H/P Wafer Butterfly Valve Standard Specifications

Material
  • - Body : Ductile iron, Cast steel, Stainless steel (304，316)
  • - Disc: Stainless steel (304，316 & 316L)
  • - Stem : Stainless steel (304，316，316L & 630)
  • - Seat ring : EPDM, PTFE, RTFE, Metal
  • - Face to face : ISO 5752, API 609, MSS SP-68,
                             DIN 3203/K1 (Short)
  • - Top flange : Bolt hole to ISO 5211
  • - Stem : Square drive to ISO 5211
  • - Double eccentric (offset) disc
  • - Vacuum equipment (up to 10-5 Torr)
Max.Temperature
  • - EPDM : -20°C to +120°C
  • - PTFE : -60°C to +160°C
  • - RTFE : -60°C to +200°C
  • - Metal : -120°C to +450°C
Option
  • - Lugged body, Long bonnet
Butterfly Dimensions - ANSI 150#, JIS 10K / 20K(Unit : ㎜)DV
Size ∮d L H1 H2 H3 K PCD ∮Q Torque N.m
Inch ㎜
3/4" 20 28 33 50 116 35 9 F07 10 12
1" 25 28 33 50 116 35 9 F07 10 12
1-1/4" 32 37 33 63 121 35 9 F07 10 12
1-1/2" 40 37 33 63 121 35 9 F07 10 12
2" 50 49 43 83 123 35 11 F07 10 13
2-1/2" 65 62 47 94 144 35 11 F07 10 23
3" 80 73 48 102 154 35 11 F07 10 32
4" 100 95 54 117 174 35 11 F07 10 51
5" 125 122 57 135 193 35 14 F07 10 85
6" 150 141 57 155 213 35 17 F07 10 124
8" 200 194 64 197 250 50 22 F10 12 199
10" 250 238 72 228 275 50 22 F12 12 307
12" 300 278 81 260 260 50 27 F12 17 425
Butterfly Dimensions - ANSI 300#(Unit : ㎜)DV
Size ∮d L H1 H2 H3 K PCD ∮Q Torque N.m
Inch ㎜
3/4" 20 28 33 50 116 35 9 F07 10 24
1" 25 28 33 50 116 35 9 F07 10 24
1-1/4" 32 37 33 63 121 35 9 F07 10 24
1-1/2" 40 37 33 63 116 35 9 F07 10 24
2" 50 49 43 83 123 35 11 F07 10 27
2-1/2" 65 62 47 94 144 35 11 F07 10 50
3" 80 73 48 102 154 35 11 F07 10 72
4" 100 95 54 117 174 35 11 F07 10 89
5" 125 122 57 135 193 35 14 F07 10 141
6" 150 141 59 155 213 35 17 F07 10 280
8" 200 194 73 210 250 50 22 F10 12 486
10" 250 235 83 240 280 50 22 F12 12 684
12" 300 276 92 270 320 50 27 F12 17 948
