Globe Control Valve Specifications

Globe Control Valve Specifications

Features & Specification		Usage
Size	1/4”~14”[8~400mm]	Power Plant, Petrochmical Plant, Industrial plant Water supply, Ballast Water, Turbo chiller High Pressure gas, Water, Steam, Air, Ozone, LNG
Rating	ANSI #150~#4500[1~32MPa]
Pressure range	4 /1 ~2675 / 1
Pressure Control	ZetTrim [Low, High, Ultra]	ValTech core technology
Flow Control Plug	Injection, Pilot, Multi Choke	① ZetTrim flow velocity deceleration - differential pressure technology. ② Orifice reduced pressure - differential pressure technology. ③ Pilot - ZetTrim reduced pressure technology. ④ Patent 7
Temperature	-160~560℃
Body Style	Globe
Seat Leakage	ANSI Class Ⅲ or Ⅵ

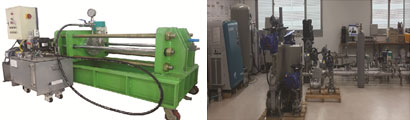

End Connect	RF Flange, BW, SW	ValTech Valve Testing Equipment
Body Material	WCB, WC6(9),CF8,CF8M Casting, forged, stainless steel	① Air pressure(1MPa) - Flow test ② Water pressure(2MPa) - Flow test ③ Water Pressure(100MOa) - body test or seat leakage test

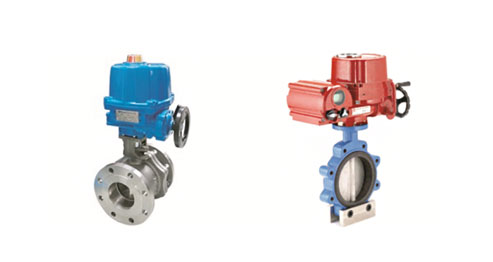

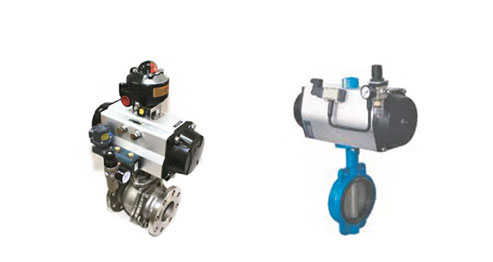

Pneumatic Actuator		Electric Actuator
Ep Positioner	4~20mA DC[Option Smart]	Power	4~20mA DC[Option Smart]
Air Set	Piston: ~0.6MPa Diaphragm : ~0.3MPa	Signal	Piston: ~0.6MPa Diaphragm : ~0.3MPa
